FTI Performance 700R4 Level 3 Transmission Package – Professional Overview
The FTI Performance 700R4 Level 3 Transmission Package FTK7R4-3E3 combines a remanufactured 4-speed automatic transmission with a matched torque converter and supporting installation components. FTI Performance positions this Level 3 package for street-performance applications where durability, controlled shifting, and useful drivetrain gearing are important.
The package uses the 700R4 transmission platform with a Chevy bellhousing bolt pattern, forward shift pattern, and automatic valve body. Its 3.06 first-gear ratio provides the gearing associated with the 700R4 platform, while the lockup-compatible design supports applications that require torque-converter lockup functionality.
FTI Performance lists the transmission with an advertised 600 horsepower rating, making this package suitable for performance-oriented street builds within the stated application requirements.
Compatibility, Applications, and Technical Context
This transmission package is designed around Chevrolet applications and uses a 30-spline input with a 7.500-inch tailshaft. The OEM-style aluminum case and forward shift pattern maintain the familiar configuration expected from this transmission family.
The package is specifically noted for use with an Edelbrock carburetor. It includes a TV cable, filler tube, and TV correction for carbureted intake manifolds. These components make the package particularly relevant to buyers building or upgrading carbureted street-performance vehicles.
The transmission is also lockup compatible, which is an important consideration when matching the drivetrain to the vehicle’s intended operating characteristics.
The supplied torque converter carries an advertised 3,200 rpm flash stall rating. This specification is particularly relevant for performance street applications where converter characteristics need to complement the engine and overall drivetrain combination.
Before purchasing, buyers should confirm transmission, engine, carburetor, bellhousing, driveshaft, and vehicle-specific compatibility.
Construction, Standards, and Performance Integrity
The transmission is supplied as a remanufactured unit rather than a new aftermarket transmission. FTI Performance describes its Level 3 700R4 packages as being developed for street performance, with the transmission and supporting components selected to provide durability and improved drivetrain response.
The transmission uses an aluminum OEM-style case and a hardened steel input shaft. Its stock-style steel transmission pan provides the conventional pan configuration for the application.
The included torque converter is part of the package rather than an unrelated replacement component. FTI Performance specifies the converter at a 3,200 rpm advertised flash stall rating, providing buyers with an important performance characteristic when evaluating the complete drivetrain combination.
The package also includes 12 quarts of transmission fluid and a dipstick, helping provide a more complete package for the intended installation.
Why This 700R4 Transmission Package Stands Out
A major advantage of the FTK7R4-3E3 is that it combines the transmission and several supporting components into one package. Instead of purchasing the transmission alone and sourcing the TV cable, carburetor-related correction components, filler tube, torque converter, and fluid separately, the package brings these specified components together.
The 600 hp advertised rating gives performance-oriented buyers a clear reference point when evaluating the transmission for their build. At the same time, the 3,200 rpm torque converter provides a defined converter characteristic for applications where additional stall speed is desirable.
The package’s lockup compatibility also distinguishes it from non-lockup performance transmissions. This makes it relevant to street vehicles where the 700R4’s four-speed configuration and lockup functionality are part of the desired drivetrain setup.
FTI Performance also emphasizes durability and street-performance capability for its Level 3 700R4 packages, making this configuration appropriate for buyers looking beyond a basic stock replacement transmission.
Who This Product Is Best For
This package is best suited to buyers building or upgrading a Chevy street-performance vehicle around a 700R4 transmission.
It is particularly relevant for:
- Street-performance vehicle owners
- Carbureted Chevrolet builds
- Edelbrock carburetor applications
- Buyers seeking a 700R4 transmission with torque converter
- Performance enthusiasts targeting applications up to the stated 600 hp rating
- Builders who want a transmission package with supporting installation components
The FTK7R4-3E3 is less suited to buyers who need a transmission controller, trans-brake, or dedicated racing configuration, as those features are not included with this package.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | FTI Performance |
| Manufacturer Part Number | FTK7R4-3E3 |
| Product Line | FTI Performance 700R4 Level 3 Transmission Packages |
| Part Type | Automatic Transmission Package |
| Summit Racing Part Number | FTI-FTK7R4-3E3 |
| Number of Gears | 4 |
| Bellhousing Pattern | Chevy |
| Shift Pattern | Forward |
| Valve Body | Automatic |
| Advertised Horsepower Rating | 600 hp |
| Torque Converter | Included |
| Torque Converter Stall Rating | 3,200 rpm |
| Flexplate | Not included |
| Transmission Controller | Not included |
| Wiring Harness | Not included |
| Transmission Cooler | Not included |
| Trans-Brake | Not included |
| Lockup Compatible | Yes |
| Transmission Pan | Stock |
| Pan Material | Steel |
| Pan Finish | Natural |
| Tailshaft Length | 7.500 in. |
| Yoke Style | Slip-on |
| Input Spline | 30 |
| Input Shaft Material | Hardened steel |
| First Gear Ratio | 3.06 |
| Transmission Case | OEM style |
| Case Material | Aluminum |
| Case Finish | Natural |
| Fluid Fill Location | Case |
| Transmission Fluid | Included |
| Fluid Quantity | 12 qt. |
| Dipstick | Included |
| Remanufactured | Yes |
| Quantity | Sold as a kit |
| Carburetor Application | Designed for Edelbrock carburetor |
| Included Application Components | TV cable, filler tube, TV correction |
| UPC | 887753817556 |
Ordering Confidence, Availability, and Support
Choosing a performance transmission requires more than matching the transmission name alone. Buyers should verify the bellhousing pattern, input spline, tailshaft length, first-gear ratio, lockup requirements, carburetor configuration, and horsepower level against their specific vehicle and drivetrain.

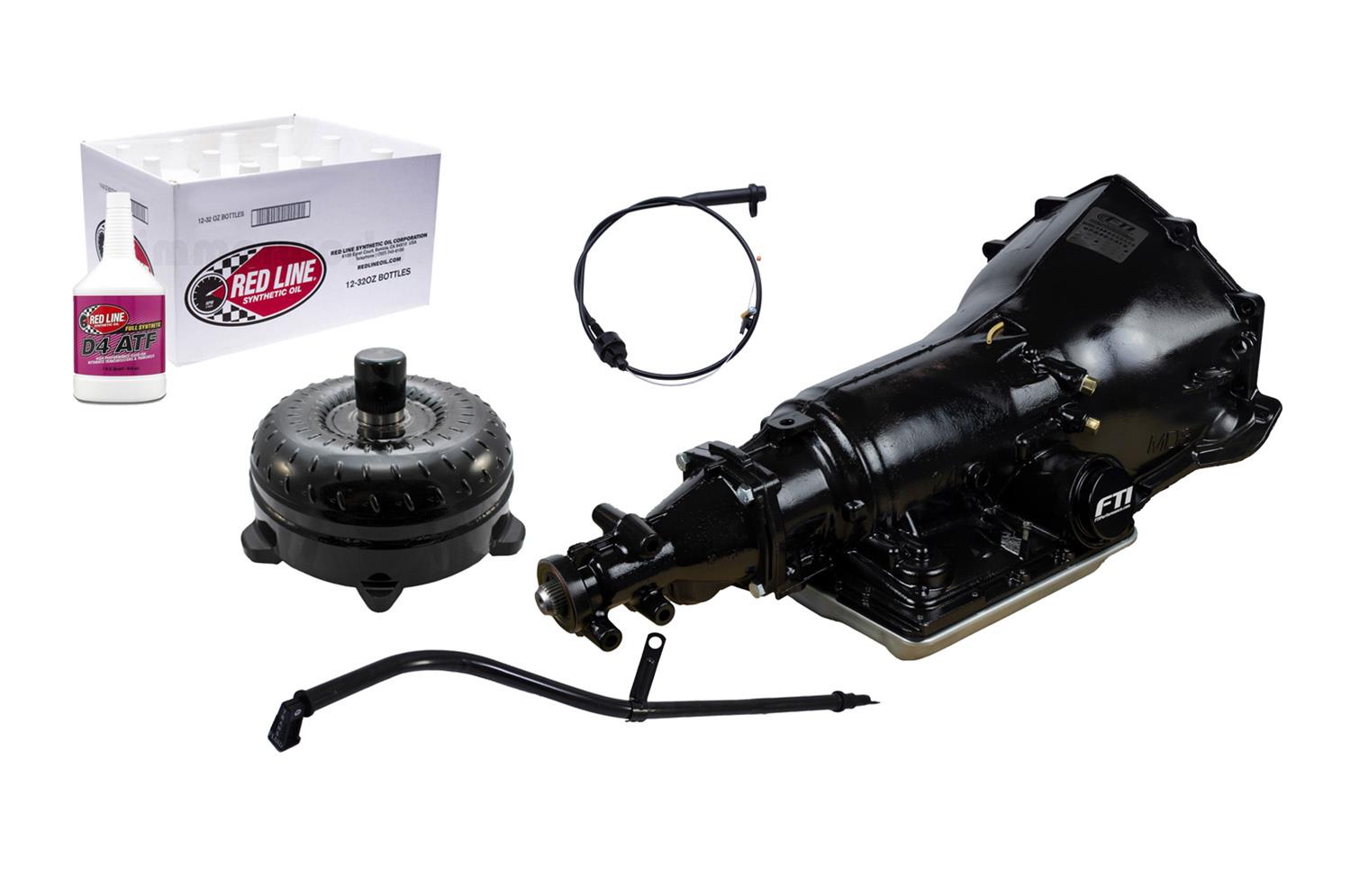

The FTK7R4-3E3 is supplied as a complete package with the components specifically identified by FTI Performance. It includes the transmission, torque converter, transmission fluid, dipstick, TV cable, filler tube, and specified TV correction components.
For buyers comparing options within the automatic transmission category, this FTI Performance package can be evaluated alongside other 700R4 transmissions, performance automatic transmissions, and complementary drivetrain components based on vehicle compatibility and intended use.
Because fitment can vary between vehicles and engine combinations, professional application guidance is recommended when the existing transmission configuration or carburetor setup is uncertain.
Frequently Asked Questions
What is the FTI Performance 700R4 Level 3 Transmission Package FTK7R4-3E3?
The FTK7R4-3E3 is a remanufactured 4-speed automatic transmission package from FTI Performance. It uses a Chevy bellhousing pattern, has a 3.06 first-gear ratio, is lockup compatible, and carries an advertised 600 hp rating. The package also includes a 3,200 rpm torque converter and several components intended for carbureted applications.
Does the FTK7R4-3E3 include a torque converter?
Yes. The package includes a torque converter with an advertised 3,200 rpm flash stall rating. This converter is supplied as part of the transmission package, allowing buyers to evaluate the transmission and converter combination together when planning a compatible street-performance drivetrain.
What horsepower is the FTI 700R4 Level 3 package rated for?
FTI Performance lists the FTK7R4-3E3 with an advertised 600 horsepower rating. Buyers should compare their actual engine output and intended driving conditions with this stated rating and confirm that the complete drivetrain configuration is appropriate for the application.
Is this 700R4 transmission compatible with lockup operation?
Yes. The FTK7R4-3E3 is specified as lockup compatible. This makes it appropriate for applications where torque-converter lockup is part of the intended drivetrain configuration. The vehicle’s existing wiring and control requirements should be evaluated before installation.
Is the FTK7R4-3E3 suitable for an Edelbrock carburetor?
Yes. The product is specifically designed for use with an Edelbrock carburetor and includes a TV cable, filler tube, and TV correction for carbureted intake manifolds. Buyers should still verify their exact carburetor and intake configuration before ordering.
What is included with this transmission package?
The package includes the remanufactured 700R4 transmission, torque converter, TV cable, filler tube, TV correction components for carbureted intake manifolds, dipstick, and 12 quarts of transmission fluid. A flexplate, transmission controller, wiring harness, and transmission cooler are not included.
What should I verify before purchasing this 700R4 package?
Confirm the vehicle’s Chevy bellhousing compatibility, 30-spline input requirement, 7.500-inch tailshaft configuration, carburetor setup, lockup requirements, and engine power level. Because drivetrain configurations vary, confirming these details before purchase helps ensure the transmission package matches the intended application.
