Description
TCI StreetFighter Automatic Transmission Packages 111100P1 – Professional Overview
The TCI StreetFighter Automatic Transmission Packages 111100P1 is a complete transmission package built around a remanufactured 3-speed automatic transmission for compatible Mopar applications.

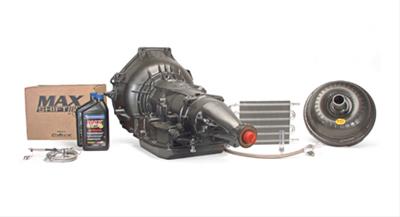

Unlike purchasing a transmission alone, this package combines several important drivetrain components. It includes the remanufactured TCI transmission, a precision-tuned 10-inch torque converter, universal transmission cooler, premium TCI RTF transmission fluid, and locking dipstick and tube.
The transmission carries an advertised 625 horsepower rating and uses a 2.45 first gear ratio. Its automatic/manual valve body allows compatible applications to retain automatic operation while providing manual gear-selection capability.
TCI puts its StreetFighter packages through testing to verify internal fluid pressures and shift characteristics against its quality-control requirements. The result is a performance-oriented transmission package intended for demanding street-machine applications.
Compatibility and Application Details
PAckage 111100P1 uses a Mopar bellhousing bolt pattern, a 24-spline input, and an 18.375-inch tailshaft. These specifications should be matched against the vehicle and existing drivetrain before ordering.
The transmission has a forward shift pattern and uses an automatic/manual valve body. In normal drive operation, the transmission can shift automatically, while compatible applications can manually select gears through the valve body’s manual functionality.
The package uses a 2.45 first gear ratio, making the transmission’s gearing another important consideration when evaluating the complete vehicle drivetrain.
The included torque converter has a 10-inch diameter and 3,000 rpm advertised flash stall rating. It uses Hemi-style 7/16-20-inch bolts, which should be considered when confirming compatibility with the engine and flexplate arrangement.
The package is not lockup compatible and does not include a flexplate, transmission controller, or wiring harness.
Construction and Included Components
The transmission is built around an OEM-style aluminum case with a black finish and a deep steel pan finished in chrome. The configuration is based on TCI’s StreetFighter platform and is supplied remanufactured.
The automatic/manual valve body provides flexibility for street applications where conventional automatic operation remains important. TCI describes StreetFighter units as being capable of positive automatic shifts while also allowing manual gear selection on applicable configurations.
The package includes a universal transmission cooler to complement the transmission and torque converter. It also includes 12 quarts of premium TCI RTF transmission fluid and a dipstick.
The torque converter is precision tuned for the package and features the specified 3,000 rpm stall rating. The Hemi-style 7/16-20-inch bolt specification is particularly relevant when preparing the drivetrain for installation.
TCI emphasizes testing of internal fluid pressures and shift characteristics as part of its quality-control process. For buyers, this provides useful context when evaluating the package as a remanufactured performance transmission system.
Why This Transmission Package Is a Strong Choice
One of the main advantages of this configuration is that it brings several required transmission components together in one package. Instead of purchasing the transmission separately and sourcing the torque converter, cooler, fluid, and dipstick independently, the package includes these specified components.
The 625-horsepower rating gives buyers an important reference point when evaluating the transmission against their engine output and intended use.
The 3-speed configuration also retains the familiar characteristics of a conventional performance automatic transmission. Its 2.45 first gear ratio, 24-spline input, and Mopar bellhousing pattern provide key information for drivetrain matching.
Another consideration is the automatic/manual valve body. This configuration is useful for drivers who want normal automatic operation while retaining manual gear-selection capability when appropriate.
The package is particularly relevant when a buyer wants a more complete transmission solution rather than a transmission housing alone.
Who This Transmission Package Is Best For
TCI StreetFighter Automatic Transmission Packages 111100P1 is best suited to buyers who need a compatible Mopar performance automatic transmission package and want several supporting components supplied together.
It can be considered for:
- Compatible Mopar street vehicles
- Street-performance builds
- Street machines requiring a remanufactured 3-speed automatic
- Applications compatible with a 24-spline input
- Builds requiring a 10-inch, 3,000 rpm stall torque converter
- Buyers who want a transmission package with a cooler and fluid included
- Applications where automatic/manual valve-body functionality is appropriate
The package is not suitable for every drivetrain. Buyers should verify bellhousing pattern, input spline count, tailshaft length, torque converter bolt pattern, stall requirements, and other application-specific specifications before ordering.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | TCI Auto |
| Manufacturer Part Number | 111100P1 |
| Part Type | Automatic Transmission Package |
| Product Line | TCI StreetFighter Automatic Transmission Packages |
| Summit Racing Part Number | TCI-111100P1 |
| UPC | 788120044271 |
| Number of Gears | 3 |
| Bellhousing Bolt Pattern | Mopar |
| Shift Pattern | Forward |
| Valve Body Style | Automatic/Manual |
| Advertised Horsepower Rating | 625 hp |
| Torque Converter | Included |
| Torque Converter Diameter | 10.000 in. |
| Advertised Flash Stall | 3,000 rpm |
| Torque Converter Bolt Specification | Hemi-style 7/16-20 in. |
| Flexplate | Not included |
| Transmission Controller | Not included |
| Wiring Harness | Not included |
| Transmission Cooler | Included |
| Trans-Brake | No |
| Lockup Compatible | No |
| Transmission Pan | Deep |
| Pan Material | Steel |
| Pan Finish | Chrome |
| Tailshaft Length | 18.375 in. |
| Input Spline Quantity | 24 |
| First Gear Ratio | 2.45 |
| Transmission Case Style | OEM |
| Case Material | Aluminum |
| Case Finish | Black |
| Transmission Shield | No |
| Flexplate Shield | No |
| Fluid Fill Location | Case |
| Transmission Fluid | Included |
| Fluid Quantity | 12 qt. |
| Dipstick | Included |
| Remanufactured | Yes |
| Quantity | Sold as a kit |
Ordering and Fitment Support
Before ordering TCI StreetFighter Automatic Transmission Packages 111100P1, buyers should confirm that the transmission and included torque converter correspond with the vehicle’s complete drivetrain configuration.
Important details include the Mopar bellhousing pattern, 24-spline input, 18.375-inch tailshaft, 10-inch torque converter, Hemi-style 7/16-20-inch converter bolts, and 3,000 rpm advertised stall rating.
The package includes the transmission, torque converter, universal cooler, 12 quarts of TCI RTF transmission fluid, and dipstick. However, the flexplate, controller, and wiring harness are not included according to the supplied specifications.
For buyers comparing alternatives, related automatic transmissions and complementary drivetrain components can provide additional options when a different gear count, bellhousing configuration, or performance specification is required.
Frequently Asked Questions
What is included with TCI StreetFighter Automatic Transmission Packages 111100P1?
The package includes a remanufactured TCI StreetFighter transmission, precision-tuned 10-inch torque converter, universal transmission cooler, 12 quarts of premium TCI RTF transmission fluid, and a dipstick. The flexplate, transmission controller, and wiring harness are not included according to the supplied specifications.
What is the horsepower rating of TCI 111100P1?
TCI lists this StreetFighter transmission package with an advertised horsepower rating of 625 hp. Buyers should compare this rating with their engine output and intended application while also considering the complete drivetrain configuration and operating conditions.
What is the stall speed of the included torque converter?
The included torque converter has an advertised flash stall rating of 3,000 rpm and measures 10 inches in diameter. It uses Hemi-style 7/16-20-inch bolts, making converter and flexplate compatibility important when preparing the vehicle for installation.
Is TCI 111100P1 compatible with lockup?
No. The supplied specifications identify this transmission package as not lockup compatible. It is therefore intended for a conventional non-lockup automatic transmission configuration rather than an application requiring lockup functionality.
What vehicles does TCI 111100P1 fit?
The package uses a Mopar bellhousing bolt pattern, 24-spline input, and 18.375-inch tailshaft. These specifications make it relevant to compatible Mopar applications, but complete vehicle fitment should be confirmed using the engine, drivetrain, converter, tailshaft, and other application-specific requirements.
Does this TCI transmission have an automatic or manual valve body?
The transmission uses an automatic/manual valve body. This allows compatible applications to operate automatically in normal drive while also providing manual gear-selection capability. TCI positions the StreetFighter platform for performance-oriented street-machine use.
Does the package include transmission fluid?
Yes. The package includes 12 quarts of premium TCI RTF transmission fluid. It also includes a dipstick and a universal transmission cooler, making the package more comprehensive than a transmission-only purchase.
