Description

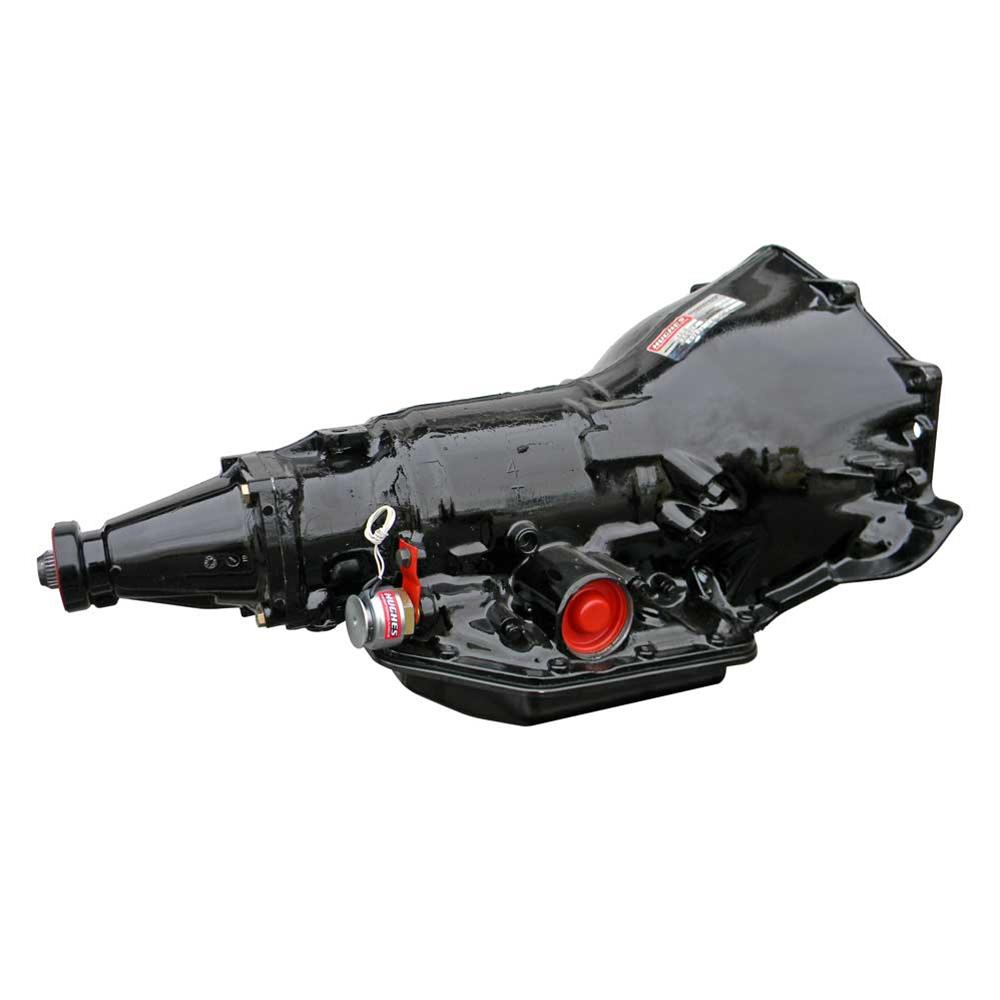

Hughes Performance 35-3: Professional Overview
The Hughes Performance Street and Strip Transmissions 35-3 is part of Hughes Performance’s Street and Strip transmission range. It is a remanufactured three-speed automatic transmission configured for performance-oriented applications.
Hughes Performance describes its Street and Strip transmissions as being built with internal and external racing components designed to increase strength, reliability, and torque capacity. The 35-3 incorporates this performance-focused configuration while adding a full-manual valve body and trans-brake.
The transmission carries an advertised 650-horsepower rating, making it a higher-capacity option within the Street and Strip range.
The 35-3 uses a Chevy bellhousing bolt pattern and has a reverse shift pattern. Its full-manual valve body provides a manual shifting configuration rather than the automatic/manual valve body found on some other Hughes Street and Strip models.
The transmission has three gears and a 2.52 first gear ratio. It uses a 30-spline input, 6.000-inch tailshaft, and slip-on yoke.
The transmission case follows an OEM-style design and is constructed from aluminum with a black finish. Its stock transmission pan is also aluminum and has a chrome finish.
A trans-brake is included with this model. The supplied product information also specifies that operation of reverse gear requires depression of the trans-brake button.
The 35-3 is not lockup compatible and does not include a torque converter, flexplate, transmission controller, wiring harness, transmission cooler, transmission fluid, or dipstick.
Performance Applications and Compatibility
The Hughes Performance 35-3 is designed for buyers seeking a specialized transmission for street and strip performance applications.
Its Chevy bellhousing pattern is a primary fitment consideration. Buyers should verify that the intended engine and drivetrain use the appropriate mounting pattern before ordering.
The transmission uses a 30-spline input and a 6.000-inch tailshaft. Its output uses a slip-on yoke. These specifications should be compared with the existing drivetrain to establish physical compatibility.
The 35-3 has a 2.52 first gear ratio and three forward gears. Its reverse shift pattern and full-manual valve body define its operating configuration.
The transmission also includes a trans-brake. According to the supplied product notes, reverse gear operation requires depression of the trans-brake button. This is an important operating characteristic that buyers should understand before selecting the transmission.
The 35-3 is not lockup compatible. It also does not include a transmission controller or wiring harness, making it different from electronically controlled transmission configurations.
The advertised 650-horsepower rating is another key selection factor. Buyers should evaluate this rating in relation to the complete engine and drivetrain combination and the intended application.
Construction and Performance Features
The Hughes Performance Street and Strip Transmissions 35-3 incorporates racing-oriented components intended to support demanding performance use.
Hughes Performance states that its Street and Strip transmissions use internal and external racing components designed to increase strength, reliability, and torque capacity.
The 35-3 is configured with a full-manual valve body. This provides a different operating configuration from Hughes models equipped with manual/automatic valve bodies.
The transmission uses an aluminum OEM-style case with a black finish. Its stock-style transmission pan is made from aluminum and has a chrome finish.
The 35-3 also incorporates a trans-brake. This feature, combined with its full-manual valve body and reverse shift pattern, establishes its specialized performance configuration.
The transmission is remanufactured rather than new. Its remanufactured status should be considered when comparing it with other performance transmission options.
The supplied specifications do not identify a built-in transmission shield or flexplate shield. The unit also does not include a trans-brake separately as an accessory because the trans-brake is already included in the transmission configuration.
Why Choose the Hughes Performance 35-3?
The Hughes Performance 35-3 combines a three-speed transmission configuration with a 650-horsepower advertised rating and a full-manual valve body.
One of its strongest distinguishing features is the included trans-brake. Buyers looking for a Hughes Street and Strip transmission with this configuration can use the trans-brake specification as an important selection criterion.
The transmission’s 2.52 first gear ratio provides another useful reference when comparing performance automatic transmissions. Its gearing should be considered together with the vehicle’s engine and other drivetrain components.
The Chevy bellhousing pattern, 30-spline input, 6.000-inch tailshaft, and slip-on yoke provide key physical fitment information.
The aluminum case and aluminum transmission pan are also part of the specified construction. The case has a black finish, while the pan has a chrome finish.
The transmission’s reverse gear operating requirement is particularly important. The supplied product notes state that reverse operation requires depression of the trans-brake button.
The 35-3 is sold individually and does not include a torque converter, flexplate, transmission controller, wiring harness, transmission cooler, transmission fluid, or dipstick.
Who Is the 35-3 Designed For?
The Hughes Performance 35-3 is intended for buyers building or maintaining performance vehicles for street and strip applications.
Its 650-horsepower advertised rating makes it relevant to higher-output performance applications within the specified product range.
The transmission is particularly suited to buyers who require a full-manual three-speed transmission with a trans-brake and a Chevy bellhousing configuration.
Performance enthusiasts, drag-oriented vehicle builders, racing teams, and professional drivetrain specialists may consider this model when its specifications match the intended vehicle.
The 30-spline input, 6.000-inch tailshaft, slip-on yoke, 2.52 first gear ratio, and Chevy bellhousing pattern should all be verified before ordering.
The transmission’s reverse operation also requires special attention because the supplied notes specify that the trans-brake button must be depressed to operate reverse gear.
Customers who need different shifting or drivetrain configurations can compare related Hughes Performance Street and Strip transmissions and other performance automatic transmission options.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hughes Performance |
| Manufacturer’s Part Number | 35-3 |
| Product Line | Hughes Performance Street and Strip Transmissions |
| Part Type | Automatic Transmissions |
| Summit Racing Part Number | HUP-35-3 |
| Condition | Remanufactured |
| Number of Gears | 3 |
| Bellhousing Bolt Pattern | Chevy |
| Transmission Shift Pattern | Reverse |
| Valve Body Style | Full manual |
| Advertised Horsepower Rating | 650 HP |
| First Gear Ratio | 2.52 |
| Torque Converter | Not included |
| Flexplate | Not included |
| Transmission Controller | Not included |
| Wiring Harness | Not included |
| Transmission Cooler | Not included |
| Trans-Brake | Included |
| Lockup Compatible | No |
| Transmission Pan Style | Stock |
| Transmission Pan Material | Aluminum |
| Transmission Pan Finish | Chrome |
| Tailshaft Length | 6.000 in. |
| Yoke Style | Slip-on |
| Input Spline Quantity | 30 |
| Transmission Case Style | OEM |
| Transmission Case Material | Aluminum |
| Transmission Case Finish | Black |
| Transmission Shield Built In | No |
| Flexplate Shield Built In | No |
| Fluid Fill Location | Case |
| Transmission Fluid | Not included |
| Dipstick | Not included |
| Quantity | Sold individually |
| Application | Street and strip performance |
| Reverse Gear Note | Reverse operation requires depression of trans-brake button |
The table provides a quick reference for the most important Hughes Performance 35-3 transmission specifications. Customers can quickly check the horsepower rating, gear count, bellhousing pattern, valve body, trans-brake, gearing, input spline, tailshaft length, case construction, and included components.
Important Reverse Gear and Trans-Brake Information
The Hughes Performance 35-3 includes a trans-brake, but the supplied product notes identify an important operating characteristic.
Operation of reverse gear requires depression of the trans-brake button.
This information should be considered before purchasing the transmission. Buyers who are replacing an existing transmission should compare the operating requirements of the 35-3 with their current drivetrain configuration.
The trans-brake is part of the supplied transmission configuration and is not an additional accessory that needs to be added to the product.
Included and Excluded Components
The Hughes Performance 35-3 does not include a torque converter. It also does not include a flexplate, transmission controller, wiring harness, transmission cooler, transmission fluid, or dipstick.
The transmission does include a trans-brake.
The unit is sold individually and supplied in remanufactured condition.
Buyers should review these inclusions and exclusions when planning the complete drivetrain and determining which additional components may be required for their particular application.
Ordering and Product Support
The Hughes Performance Street and Strip Transmissions 35-3 is identified by Hughes Performance part number 35-3 and Summit Racing part number HUP-35-3.
The transmission is supplied as a remanufactured unit and sold individually.
Before ordering, buyers should verify the Chevy bellhousing pattern, 30-spline input, 6.000-inch tailshaft, slip-on yoke, 2.52 first gear ratio, and full-manual valve body.
The advertised 650-horsepower rating should also be considered in relation to the engine and complete drivetrain.
Customers should pay particular attention to the reverse gear requirement. According to the supplied product notes, reverse gear operation requires depression of the trans-brake button.
For customers comparing other performance automatic transmissions, the Hughes Street and Strip range provides different configurations that can be evaluated according to horsepower rating, gear count, valve body style, trans-brake configuration, gearing, and vehicle compatibility.
Frequently Asked Questions
What is the Hughes Performance 35-3 transmission?
The Hughes Performance 35-3 is a remanufactured three-speed automatic transmission designed for street and strip performance applications. It features a Chevy bellhousing pattern, full-manual valve body, 650-horsepower advertised rating, 2.52 first gear ratio, 30-spline input, and an included trans-brake.
How much horsepower is the Hughes Performance 35-3 rated for?
The Hughes Performance 35-3 has an advertised 650-horsepower rating. This specification provides an important reference when matching the transmission to a performance engine. Buyers should consider the rating alongside the complete drivetrain and intended street or strip application.
Does the Hughes 35-3 include a trans-brake?
Yes. The Hughes Performance 35-3 includes a trans-brake. The supplied product notes also specify that operation of reverse gear requires depression of the trans-brake button, making this an important characteristic to understand before ordering.
What bellhousing pattern does the Hughes Performance 35-3 use?
The Hughes Performance 35-3 uses a Chevy bellhousing bolt pattern. It also has a 30-spline input, 6.000-inch tailshaft, and slip-on yoke. Buyers should verify these specifications against their engine and drivetrain before purchasing.
What is the first gear ratio of the Hughes 35-3?
The Hughes Performance 35-3 has a 2.52 first gear ratio and three gears. This gearing forms part of the transmission’s performance configuration and should be evaluated alongside the engine, rear-end gearing, and other drivetrain components.
Is the Hughes Performance 35-3 lockup compatible?
No. The supplied specifications identify the 35-3 as not lockup compatible. This should be considered when matching the transmission to the vehicle’s drivetrain and when comparing it with other performance automatic transmission configurations.
Does the Hughes 35-3 include a torque converter?
No. The torque converter is not included with the Hughes Performance 35-3. The transmission also does not include a flexplate, controller, wiring harness, transmission cooler, transmission fluid, or dipstick. The transmission is sold individually.
