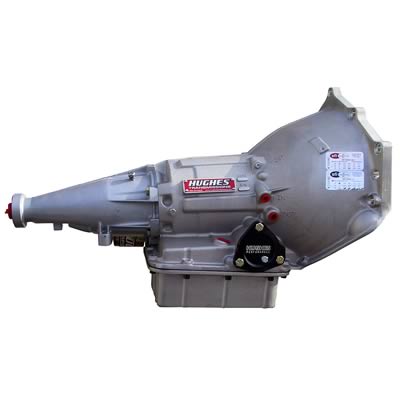

Hughes Performance Competition Transmissions 28-4-76B2D

Description

Product Overview

The Hughes Performance Competition Transmissions 28-4-76B2D is a serious competition automatic transmission built for compatible Chevy drag racing applications where launch control, strength, and repeatable performance are critical. As part of the Hughes Performance Competition Transmissions line, this unit is engineered for demanding race environments and is designed to withstand pass after pass.

This transmission is identified by Manufacturer’s Part Number 28-4-76B2D and Summit Racing Part Number HUP-28-4-76B2D. These identifiers help drag racers, race teams, chassis builders, engine builders, race-prep garages, transmission installers, and drivetrain specialists confirm the correct Hughes Performance transmission before ordering.

The transmission features a 2-speed automatic configuration, Chevy bellhousing bolt pattern, reverse shift pattern, and full manual valve body. It is listed with a 1,250 horsepower rating, making it a strong option for high-output competition vehicles when properly matched to the engine, converter, chassis, rear gear, tire size, and racing class.

The transmission includes a trans-brake, giving racers controlled launch capability when properly wired and configured. Hughes competition transmissions are equipped with Hughes Pro III trans-brake valve bodies, supporting quick, solid shifts in serious competition use.

This unit uses a deep aluminum pan, 1.625-inch tailshaft, slip-on yoke style, 30-spline input, 1.76 first gear ratio, steel clutch hub, and black aluminum case.

It also includes built-in transmission shield and built-in flexplate shield protection, with an SFI 4.1/30.1 rating. The notes confirm that an SFI 4.1 safety liner is included.

This transmission is built in a short style for dragster chassis and includes a billet planetary with 9310 gears, both of which are important confirmed details for dragster and high-performance racing applications.

The torque converter is not included, the flexplate is not included, the transmission controller is not included, the wiring harness is not included, the transmission cooler is not included, transmission fluid is not included, and the dipstick is not included, so buyers should plan all supporting components before installation.

Fitment and Application Details

The Hughes Performance 28-4-76B2D Competition transmission should be matched carefully to the intended Chevy racing application before ordering. Competition transmission fitment can vary by engine platform, bellhousing compatibility, converter setup, flexplate requirements, chassis layout, tailshaft length, driveshaft length, yoke style, shifter type, trans-brake wiring, cooler routing, fluid requirements, and race safety rules.

This transmission is listed with a Chevy bellhousing bolt pattern, 2-speed automatic configuration, reverse shift pattern, full manual valve body, 1.625-inch short tailshaft, and short style for dragster chassis. Buyers should confirm that this exact short-style configuration matches the intended dragster chassis, transmission mount location, crossmember setup, driveshaft/yoke requirements, converter, and engine combination.

Important fitment details to verify include vehicle or chassis type, engine platform, Chevy bellhousing bolt pattern, torque converter requirements, flexplate compatibility, converter bolt pattern, crankshaft pilot fitment, 1.625-inch tailshaft fitment, slip-on yoke compatibility, 30-spline input compatibility, transmission mount location, crossmember position, driveshaft length, shifter compatibility, reverse shift pattern, full manual valve body operation, trans-brake wiring, activation method, cooler line routing, transmission cooler requirements, fluid specifications, dipstick setup, SFI 4.1/30.1 compliance needs, and racing-class rules.

Because this transmission is listed with a full manual valve body, buyers should confirm shifter compatibility, shift pattern, and driver-controlled shifting requirements before installation.

Because the trans-brake is included, buyers should confirm activation method, wiring, launch-control setup, converter compatibility, battery/electrical readiness, and sanctioning-body rules before ordering.

Because this unit includes built-in shields and an SFI 4.1 safety liner, buyers should confirm the safety requirements for the intended race class and chassis.

For a complete installation, additional components may be required, including a torque converter, flexplate, transmission cooler, cooler lines, transmission fluid, dipstick, shifter, shifter cable, trans-brake wiring, transmission mount, crossmember hardware, driveshaft/yoke components, safety hardware, and vehicle-specific installation parts.

Build Quality and Reliability

The Hughes Performance Competition Transmissions 28-4-76B2D is built for severe racing conditions where drivetrain strength and consistency are essential. Hughes Performance competition transmissions are designed to deliver strength and reliability under demanding use, using high-quality performance parts and precise assembly standards.

Hughes inspects internal and external components before assembly, then builds the transmission to exact tolerances for strong performance and dependable operation in competition settings.

This model is equipped with a reverse-pattern full manual valve body and included trans-brake, supporting firm, quick, driver-controlled shifts and controlled launch performance.

The listed 1,250 horsepower rating gives this transmission serious appeal for high-output racing builds, but buyers should still match it properly to the converter, rear gear, tire size, engine output, chassis weight, and race class.

The billet planetary with 9310 gears is a major strength-focused feature for racing applications.

The built-in transmission shield, built-in flexplate shield, included SFI 4.1 safety liner, and SFI 4.1/30.1 rating add important safety-focused value for competition buyers.

The short style for dragster chassis makes this unit especially relevant for dragster builders and race teams that need a compact tailshaft configuration.

What Makes This Transmission a Strong Choice

The Hughes Performance 28-4-76B2D Competition transmission is a strong choice for racers and builders who need a 2-speed Chevy automatic racing transmission for serious competition use.

The 1,250 horsepower rating makes it appealing for high-output drag racing applications.

The reverse shift pattern and full manual valve body support race-focused driver control.

The included trans-brake supports consistent launch control when properly wired and configured.

The 1.76 first gear ratio gives builders an important gearing detail for matching engine power, converter behavior, rear gear, tire size, and track conditions.

The billet planetary with 9310 gears adds a confirmed strength-focused drivetrain feature.

The short style for dragster chassis makes this transmission highly relevant for dragster-specific builds.

The built-in transmission shield, built-in flexplate shield, included SFI 4.1 safety liner, and SFI 4.1/30.1 rating provide strong safety-focused selling points.

The exact 28-4-76B2D manufacturer part number and HUP-28-4-76B2D Summit Racing part number support accurate product identification before ordering.

Ideal Buyers and Use Cases

The Hughes Performance Competition Transmissions 28-4-76B2D is ideal for drag racers, dragster builders, race teams, chassis builders, engine builders, race-prep garages, competition vehicle owners, transmission installers, performance shops, service departments, and drivetrain specialists who need a compatible 2-speed Chevy competition transmission.

It is suitable for compatible racing applications requiring a Chevy bellhousing bolt pattern, reverse shift pattern, full manual valve body, trans-brake, 1,250 horsepower rating, 1.76 first gear ratio, short dragster-style tailshaft, billet planetary with 9310 gears, and SFI 4.1/30.1 safety rating.

This product is useful for dragsters, bracket racing cars, heads-up racing vehicles, purpose-built competition builds, high-horsepower race cars, and performance applications where a short-style racing transmission is required.

It is also a practical choice for professional race builders confirming supporting components such as the torque converter, flexplate, cooler, cooler lines, transmission fluid, dipstick, shifter, trans-brake wiring, mount, crossmember, driveshaft/yoke setup, and race safety requirements.

The best buyer for this transmission is someone who can confirm the Chevy engine fitment, converter requirements, flexplate setup, 30-spline input compatibility, 1.625-inch short tailshaft, slip-on yoke, shifter setup, safety requirements, and dragster chassis fitment before ordering.

Technical Specifications

Ordering Support and Fitment Guidance

Before ordering the Hughes Performance Competition Transmissions 28-4-76B2D, confirm that the transmission matches your Chevy racing application, dragster chassis, converter setup, shifter configuration, and safety requirements.

Important details to verify include vehicle or chassis type, engine platform, Chevy bellhousing bolt pattern, torque converter requirements, flexplate compatibility, converter bolt pattern, crankshaft pilot fitment, 30-spline input compatibility, 1.625-inch short tailshaft fitment, slip-on yoke setup, short style dragster chassis compatibility, transmission mount location, crossmember position, driveshaft length, shifter compatibility, reverse shift pattern, full manual valve body operation, trans-brake wiring, launch-control requirements, cooler line routing, transmission cooler requirements, fluid requirements, dipstick setup, SFI 4.1/30.1 requirements, and sanctioning-body rules.

This transmission is sold individually and includes the trans-brake, built-in transmission shield, built-in flexplate shield, and SFI 4.1 safety liner. It does not include the torque converter, does not include the flexplate, does not include the transmission controller, does not include the wiring harness, does not include the transmission cooler, does not include transmission fluid, and does not include a dipstick.

Our team can help confirm compatibility using the 28-4-76B2D part number, Chevy engine setup, converter requirements, short dragster chassis configuration, shifter setup, trans-brake requirements, safety requirements, and drivetrain layout before ordering.

Frequently Asked Questions

What is the Hughes Performance 28-4-76B2D transmission?

The Hughes Performance 28-4-76B2D is a 2-speed automatic competition transmission with a Chevy bellhousing bolt pattern, reverse shift pattern, full manual valve body, included trans-brake, 1.76 first gear ratio, and 1,250 horsepower rating.

How many gears does this transmission have?

This transmission has 2 gears.

What horsepower rating does this transmission have?

The transmission advertised horsepower rating is 1,250 horsepower. Buyers should confirm suitability for the exact engine output, converter, vehicle weight, rear gear, tire size, and racing class.

Is this transmission designed for dragster chassis?

Yes. The notes state this is a short style for dragster chassis. Buyers should confirm chassis fitment, tailshaft length, mount location, and driveshaft/yoke requirements before ordering.

Does this transmission include a trans-brake?

Yes. The trans-brake is included. Hughes competition transmissions are equipped with Hughes Pro III trans-brake valve bodies for racing applications.

What valve body style does this transmission use?

This transmission uses a full manual valve body with a reverse shift pattern.

What first gear ratio does it have?

The listed first gear ratio is 1.76.

Does this transmission include a torque converter?

No. The torque converter is not included. Buyers should select the correct converter for the engine, gearing, tire size, vehicle weight, and intended racing use.

Does this transmission include a flexplate?

No. The flexplate is not included. Buyers should confirm the correct flexplate for the engine, converter, crankshaft, and racing application.

Is this transmission lockup compatible?

No. This transmission is listed as not lockup compatible.

Does this transmission include a cooler, fluid, or dipstick?

No. The transmission cooler is not included, transmission fluid is not included, and the dipstick is not included. Buyers should plan these components before installation.

What safety rating does this transmission have?

This transmission is listed with an SFI 4.1/30.1 rating, and the notes confirm that an SFI 4.1 safety liner is included.

Does it have built-in shields?

Yes. This transmission has a built-in transmission shield and built-in flexplate shield.

What gearset detail is included?

The notes list a billet planetary with 9310 gears, an important confirmed feature for racing applications.

Who is this transmission best for?

This transmission is best for drag racers, dragster builders, race teams, chassis shops, performance builders, transmission installers, and drivetrain specialists who need a compatible 2-speed Chevy competition transmission with trans-brake, SFI safety rating, short dragster-style configuration, and 1,250 horsepower rating.
