Description

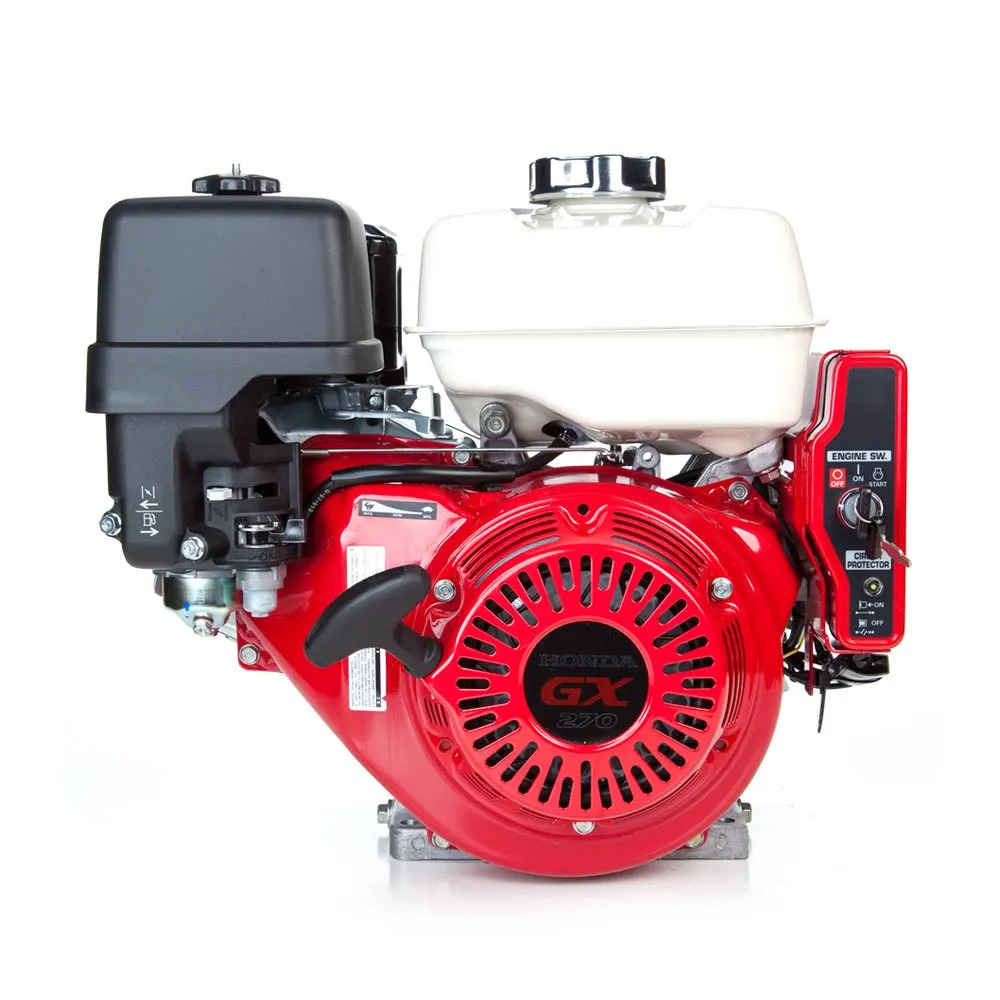

Honda GX270 HEA2 Engine Overview
The Honda GX270 HEA2 Horizontal Engine is a professional-grade small engine designed for compatible equipment that requires a durable 270cc horizontal shaft gasoline engine with gear reduction and electric starting support.
This model is listed as GX270-HEA2 and also referenced as GX270UT2HEA2. It provides 8.5 net horsepower and uses a single-cylinder layout with a cast iron cylinder bore, helping support durability in demanding equipment applications.
The engine includes both electric and recoil start, giving operators the convenience of electric starting while retaining recoil backup. The listing also notes 12V electric start with 3A alternator and a control box, making it suitable for equipment that requires compatible electrical support.
A major fitment detail is the 1-inch x 3-3/8-inch crankshaft with 1/4-inch keyway and 6:1 gear reduction. Because crankshaft dimensions, gear reduction, rotation direction, and PTO height are critical for compatibility, buyers should compare these specifications with the original engine before ordering.
Equipment Fitment and Common Applications
The Honda GX270 HEA2 Horizontal Engine is intended for compatible equipment requiring a 270cc horizontal gasoline engine with 6:1 gear reduction, electric and recoil start, and the listed crankshaft specifications.
This engine may be suitable for compatible commercial equipment, construction equipment, agricultural machines, pumps, pressure washers, generators, compact industrial machines, and specialty equipment where the original engine uses the same GX270 HEA2 configuration.
Fitment should be confirmed by comparing the original engine model, crankshaft orientation, crankshaft type, crankshaft length, keyway width, gear reduction ratio, PTO height, rotation direction, mounting setup, starter type, alternator requirement, choke setup, and equipment clearance.
This engine uses counterclockwise crankshaft rotation from the PTO side, a PTO height of 5-1/4 inches, and no bolt circle listed. These details should be checked carefully because a similar Honda GX270 engine with a different shaft, reduction setup, or mounting arrangement may not fit the same equipment.
The Honda GX270 HEA2 replacement engine is commonly selected when the original engine has suffered hard starting, low compression, ignition failure, oil-related damage, fuel system issues, internal wear, or general service-life decline.
270cc Gear Reduction Engine Performance
The Honda GX270 HEA2 uses a 270cc single-cylinder gasoline design with 8.5 net horsepower. This makes it a practical engine for equipment that needs dependable small-engine power, stable operation, and a durable commercial-grade platform.
The 6:1 gear reduction is one of the most important features of this model. Gear reduction changes the output speed and torque delivery to match equipment that requires reduced shaft speed and increased torque at the driven component.
This is different from a standard straight-shaft engine. Buyers should not replace a gear-reduction engine with a non-reduction engine unless the equipment manufacturer or a qualified technician confirms compatibility.
The engine’s cast iron cylinder bore supports durability, while the dual-element air cleaner helps protect the engine from dust and debris in demanding environments. The digital CDI ignition with variable ignition timing supports reliable spark control and smoother operation.
Crankshaft and Installation Details
Crankshaft fitment is critical when selecting the Honda GX270 HEA2 Horizontal Engine. This model uses a 1-inch x 3-3/8-inch crankshaft with a 1/4-inch keyway.
The crankshaft length is listed as 3-3/8 inches, and the crankshaft end tapped size is listed as N/A. Buyers should compare these details against the original engine and equipment coupling before ordering.
The crankshaft orientation is horizontal, and the crankshaft type is gear reduction. This engine should not be selected for equipment requiring a vertical shaft or a standard non-reduction horizontal shaft.
The crankshaft rotation direction from the PTO side is counterclockwise. Rotation direction must match the driven equipment to avoid incorrect operation, belt alignment problems, pump damage, gearbox mismatch, or unsafe installation.
The listed PTO height is 5-1/4 inches, which should also be verified for mounting and alignment.
Starting, Ignition, and Fuel System
The Honda GX270 HEA2 includes electric and recoil starting, giving operators two starting options. Electric start offers convenience for frequent use, while recoil start provides a backup method when needed.
The listing notes 12V electric start with 3A alternator and a control box. Buyers should confirm the equipment’s battery, wiring, charging requirement, switch setup, and control-box compatibility before installation.
This engine uses a gasoline fuel system with a float carburetor and manual choke control. It does not include a fuel pump, so the fuel tank location and fuel delivery setup should be compatible with gravity-feed or the equipment’s original configuration.
The ignition system is Digital CDI with Variable Ignition Timing, which supports reliable spark delivery and improved combustion timing across operating conditions.
Oil Protection and Maintenance Features
The Honda GX270 HEA2 Horizontal Engine includes low oil shutdown, an important protection feature for equipment used in demanding work conditions. Low oil shutdown helps protect the engine by stopping operation when oil level becomes unsafe.
The listing states that low oil alert is not included, but low oil shutdown is included. Buyers should understand this distinction before ordering.
The oil capacity is listed as 38, and users should confirm the correct oil quantity, oil type, and service interval according to the engine manual and equipment requirements.
This model does not include an oil cooler, so normal maintenance and correct oil level checks are important for long-term reliability.
The dual-element air cleaner also supports engine protection by helping reduce dirt and debris entering the intake system. Regular air filter service is especially important in dusty jobsite, farm, or outdoor equipment environments.
Key Benefits for Equipment Owners and Repair Shops
The Honda GX270 HEA2 Horizontal Engine gives buyers a strong replacement option for compatible equipment that requires a 270cc gear-reduction horizontal engine.
The main benefit is fitment clarity. The listed GX270-HEA2 model number, GX270UT2HEA2 reference, 1-inch x 3-3/8-inch crankshaft, 6:1 gear reduction, counterclockwise PTO rotation, and 5-1/4-inch PTO height help buyers and installers match the engine accurately.
The second benefit is starting convenience. With electric and recoil start, plus 12V electric start with 3A alternator, this engine supports equipment that requires battery-assisted starting and charging capability.
The third benefit is durability. The cast iron cylinder bore, dual-element air cleaner, digital CDI ignition, and low oil shutdown support dependable use in commercial and industrial equipment.
The 3-year consumer and commercial warranty also adds confidence for buyers replacing an important engine.
Who This Engine Is Best For
This engine is best for equipment owners, repair shops, agricultural operators, construction crews, maintenance teams, rental equipment businesses, and professional installers who need a compatible Honda GX270 HEA2 horizontal engine.
It is suitable for equipment requiring GX270-HEA2, GX270UT2HEA2, 270cc displacement, 8.5 net HP, 6:1 gear reduction, electric and recoil start, 1-inch x 3-3/8-inch crankshaft, 1/4-inch keyway, and counterclockwise PTO rotation.
This product is a strong choice when the original engine has failed because of low compression, hard starting, worn internal parts, ignition failure, carburetor-related issues, oil-related damage, or general engine wear.
This engine is not intended for equipment requiring a vertical shaft engine, non-reduction crankshaft, different shaft diameter, different shaft length, different keyway, different PTO height, different rotation direction, fuel pump, oil cooler, or incompatible electrical setup unless fitment has been professionally confirmed.
Technical Details and Included Specifications
The Honda GX270 HEA2 Horizontal Engine is listed as a 270cc gasoline horizontal engine with 8.5 net HP, electric and recoil start, 6:1 gear reduction, and a 1-inch x 3-3/8-inch crankshaft.
| Specification | Details |
|---|---|
| Product Type | Horizontal shaft replacement engine |
| Brand | Honda |
| Model Number | GX270-HEA2 |
| Additional Reference | GX270UT2HEA2 |
| Engine Series | Honda GX270 |
| Displacement | 270cc |
| Net Horsepower | 8.5 net HP |
| Fuel System | Gasoline |
| Starter Type | Electric and recoil |
| Electrical Feature | 12V electric start with 3A alternator |
| Control Box | Included per supplied description |
| Crankshaft Orientation | Horizontal |
| Crankshaft Type | Gear reduction |
| Gear Reduction | 6:1 |
| Crankshaft Dimensions | 1 in. x 3-3/8 in. |
| Crankshaft Length | 3-3/8 in. |
| Crankshaft End Tapped Size | N/A |
| Crankshaft Keyway Width | 1/4 in. |
| Rotation Direction From PTO Side | Counterclockwise |
| Cylinders | 1 |
| Cylinder Bore Type | Cast iron |
| Air Cleaner Type | Dual element |
| Fuel Pump | No |
| Oil Cooler | No |
| Oil Capacity | 38 |
| Low Oil Alert | No |
| Low Oil Shutdown | Yes |
| Ignition System | Digital CDI with Variable Ignition Timing |
| Carburetor Type | Float |
| Choke Control | Manual |
| Bolt Circle | None |
| PTO Height | 5-1/4 in. |
| Shipping Weight | 80 lb |
| Warranty | 3-year consumer and commercial |
Fitment Support and Ordering Notes
Before ordering the Honda GX270 HEA2 Horizontal Engine, buyers should confirm that it matches the original equipment setup. Important details include model number, engine series, displacement, crankshaft orientation, gear reduction ratio, crankshaft diameter, crankshaft length, keyway width, PTO height, rotation direction, starter type, alternator requirement, choke control, fuel delivery setup, and equipment clearance.
This engine uses a horizontal shaft with 6:1 gear reduction, so it should not be selected for standard horizontal shaft or vertical shaft applications unless compatibility has been confirmed.
The crankshaft is 1 inch x 3-3/8 inches with a 1/4-inch keyway, and the PTO rotation is counterclockwise from the PTO side. These specifications should match the original engine and driven equipment.
Customers can also compare this product with other Honda GX engines, compatible horizontal engines, gear-reduction engines, air filters, spark plugs, recoil components, battery parts, engine oil, fuel-system parts, mounting hardware, and service parts when planning a complete repair.
Frequently Asked Questions
What is the Honda GX270 HEA2 Horizontal Engine used for?
The Honda GX270 HEA2 Horizontal Engine is used for compatible equipment requiring a 270cc horizontal gasoline engine with 6:1 gear reduction, electric and recoil start, and a 1-inch x 3-3/8-inch crankshaft.
What model number is this Honda engine?
The model number is GX270-HEA2. It is also referenced as GX270UT2HEA2 in the supplied product information.
Does this Honda GX270 engine have electric start?
Yes. This engine includes electric and recoil start. The listing also notes 12V electric start with 3A alternator and a control box.
What are the crankshaft dimensions?
The crankshaft dimensions are 1 inch x 3-3/8 inches. The crankshaft has a 1/4-inch keyway, and the crankshaft end tapped size is listed as N/A.
Does this engine have gear reduction?
Yes. The Honda GX270 HEA2 includes 6:1 gear reduction, making it suitable for compatible equipment designed for a gear-reduction output.
Does this engine have low oil protection?
Yes. This model includes low oil shutdown. The supplied specifications list low oil alert: no and low oil shutdown: yes.
What warranty comes with this engine?
The Honda GX270 HEA2 Horizontal Engine includes a 3-year consumer and commercial warranty. Buyers should review warranty terms for installation, maintenance, and coverage requirements.
