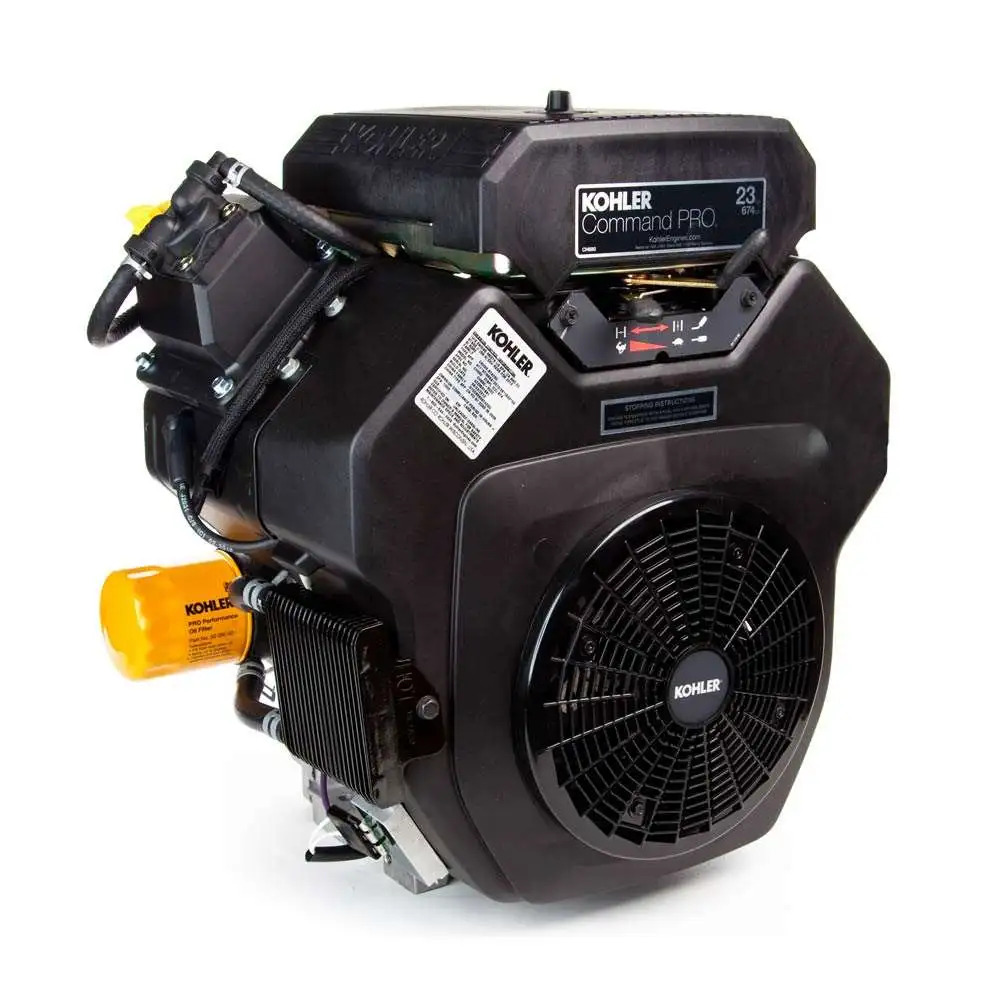

Kohler CH680 3016 Horizontal Engine – Professional Overview
The Kohler CH680 3016 Horizontal Engine is a commercial-grade gasoline engine built around Kohler’s CH680 platform. With a 674cc displacement, two cylinders, electric starting, and a horizontal crankshaft, it is designed for equipment applications where reliable engine output and precise shaft configuration are essential.
This particular engine is identified as PA-CH680-3016 and is specified for the CH680S E3 Toro Aerator. It replaces part number PA-76585, making it relevant to equipment owners, service technicians, landscapers, contractors, and maintenance professionals looking for a compatible replacement engine.
The horizontal configuration is an important part of the engine’s application. Unlike vertical-shaft engines commonly found on riding lawn equipment, this configuration is intended for machinery that transfers engine power through a horizontally positioned crankshaft.
For buyers replacing an existing engine, matching the model, crankshaft dimensions, mounting arrangement, controls, and equipment application is essential before ordering.
Applications and Compatibility
The Kohler CH680 3016 is associated with the Toro Aerator CH680S E3 application. Its horizontal crankshaft configuration and specified shaft dimensions make it particularly important to verify the original equipment requirements before installation.
The engine uses a 1-1/8-inch diameter crankshaft with a 4-5/16-inch crankshaft length. The crankshaft also uses a 1/4-inch keyway, which should be compared with the shaft configuration of the engine being replaced.
This engine is supplied with manual and remote controls and does not include an ignition switch. Buyers should therefore confirm whether their existing equipment controls and electrical configuration are suitable for the replacement.
The engine is also supplied with an electric starter, making it appropriate for equipment designed around electric starting rather than recoil-start operation.
When replacing an engine, always compare the original engine’s model information, crankshaft dimensions, mounting points, controls, and accessory arrangement. The engine’s physical dimensions and shaft configuration can be just as important as displacement when determining compatibility.
Engine Design and Performance
The CH680 platform uses a 674cc two-cylinder gasoline configuration designed to provide substantial power for commercial equipment applications. Its horizontal orientation allows the engine to integrate with machinery designed around a horizontal power-transfer arrangement.
The engine uses electronic ignition, providing the ignition architecture expected for this engine configuration. Fuel delivery is supported by an integrated fuel pump, while the large-capacity dual-element air cleaner provides filtration for demanding operating environments.
The crankshaft is engineered around a 1-1/8-inch diameter and 4-5/16-inch length, giving buyers specific dimensional information for evaluating shaft compatibility. The crankshaft also features a 1/4-inch keyway.
An electric starter provides convenient engine starting when integrated with compatible equipment. The engine is supplied without an ignition switch, so the existing equipment’s starting and control system should be checked before installation.
Key Features and Benefits
The 674cc displacement provides the engine capacity required for applications using the CH680 platform, while the two-cylinder configuration supports smooth operation compared with smaller single-cylinder designs.
The horizontal crankshaft makes this engine suitable for equipment specifically designed around horizontal power transmission. This is one of the most important characteristics to verify when selecting a replacement engine.
The electric starter provides convenient starting for compatible equipment, while the electronic ignition system supports the engine’s ignition requirements.
A large-capacity dual-element air cleaner helps provide appropriate intake filtration for equipment operating in environments where airborne dust and debris can be present.
The engine also incorporates a fuel pump, eliminating the need to select a configuration without fuel-delivery support when the equipment requires an engine-mounted pump.
The engine is backed by a 3-year consumer and commercial warranty, providing coverage for both residential and professional equipment applications according to the supplied product specifications.
Who This Engine Is Best For
The Kohler CH680 3016 Horizontal Engine is best suited to buyers who need a replacement engine for compatible commercial equipment and require the same general configuration as the original powerplant.
It is particularly relevant for:
- Commercial landscapers and grounds-care professionals
- Equipment repair and maintenance businesses
- Contractors using powered outdoor equipment
- Toro equipment owners requiring a compatible replacement
- Fleet operators maintaining commercial equipment
- Technicians replacing a worn or failed CH680-series engine
Because crankshaft dimensions and equipment interfaces vary between engines, this is not a universal replacement engine. Buyers should verify the equipment application and shaft configuration before purchasing.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model Number | PA-CH680-3016 |
| Engine Model | CH680-3016 |
| Engine Type | Horizontal Engine |
| Application | CH680S E3 Toro Aerator |
| Replacement Part Number | PA-76585 |
| Displacement | 674cc |
| Cylinders | 2 |
| Fuel Type | Gasoline |
| Starter Type | Electric |
| Crankshaft Orientation | Horizontal |
| Crankshaft Diameter | 1-1/8 inch |
| Crankshaft Length | 4-5/16 inch |
| Crankshaft Dimensions | 1-1/8 inch x 4-5/16 inch |
| Crankshaft Keyway Width | 1/4 inch |
| Air Cleaner | Large Capacity Dual Element |
| Fuel Pump | Yes |
| Oil Cooler | No |
| Oil Capacity | 64 |
| Low Oil Alert | No |
| Low Oil Shutdown | No |
| Ignition System | Electronic |
| Bolt Circle | 5-5/8; 7-3/4 |
| Controls | Manual and Remote |
| Ignition Switch | Not Included |
| Warranty | 3 Year Consumer & Commercial |
| Shipping Weight | 107 |
Replacement and Installation Considerations
Selecting a replacement engine involves more than matching displacement. The crankshaft orientation, diameter, length, keyway, starter configuration, controls, and mounting arrangement should all correspond with the equipment receiving the engine.
For this CH680-3016 configuration, particular attention should be given to the 1-1/8-inch x 4-5/16-inch crankshaft specification. Buyers should also account for the supplied manual and remote controls and the fact that an ignition switch is not included.
The engine’s application reference to the Toro Aerator CH680S E3 provides an important compatibility starting point. However, equipment configurations can vary, so confirming the original engine information remains the best way to avoid ordering an incompatible replacement.
If additional components are required for the installation, buyers should identify which parts can be transferred from the original engine and which components must be sourced separately.
Ordering, Availability, and Support
Before ordering the Kohler CH680 3016 Horizontal Engine, compare the original engine’s model number and equipment application with the specifications listed above. Particular attention should be given to the crankshaft configuration because shaft dimensions directly affect how the engine interfaces with the equipment’s power-transfer system.
The engine’s PA-CH680-3016 identification and PA-76585 replacement reference can also help buyers and technicians cross-reference the correct configuration.
For customers who need additional replacement-engine components, the broader small engine and commercial engine categories can provide useful options for related equipment requirements.
The supplied specifications should be used as the primary reference for evaluating compatibility. If the original engine information does not match, professional fitment verification is recommended before purchase.
Frequently Asked Questions
What is the Kohler CH680 3016 engine?
The Kohler CH680 3016 is a 674cc horizontal-shaft gasoline engine with two cylinders and an electric starter. It is identified as model PA-CH680-3016 and is specified for the CH680S E3 Toro Aerator application.
What equipment is the Kohler CH680-3016 designed for?
The supplied application information identifies the engine with the CH680S E3 Toro Aerator. Because equipment configurations can vary, buyers should compare their original engine model and crankshaft specifications before purchasing a replacement.
What are the crankshaft dimensions?
The engine uses a 1-1/8-inch diameter crankshaft measuring 4-5/16 inches in length. It also uses a 1/4-inch crankshaft keyway. These measurements should be matched against the equipment’s original engine.
Does the Kohler CH680 3016 have an electric starter?
Yes. The Kohler CH680 3016 uses an electric starter. It is therefore intended for equipment designed around an electric-start configuration rather than a recoil-only starting system.
Does this engine include an ignition switch?
No. The supplied specifications state that the engine comes without an ignition switch. It uses manual and remote controls, so the equipment’s existing control and ignition arrangement should be checked before installation.
What type of air cleaner does the engine use?
The engine uses a large-capacity dual-element air cleaner. This filtration configuration is designed for the engine’s intake system and is particularly relevant when evaluating replacement-engine specifications.
What warranty comes with the Kohler CH680 3016?
The engine is listed with a 3-year consumer and commercial warranty. Buyers should review the applicable warranty terms and conditions at the time of purchase.
