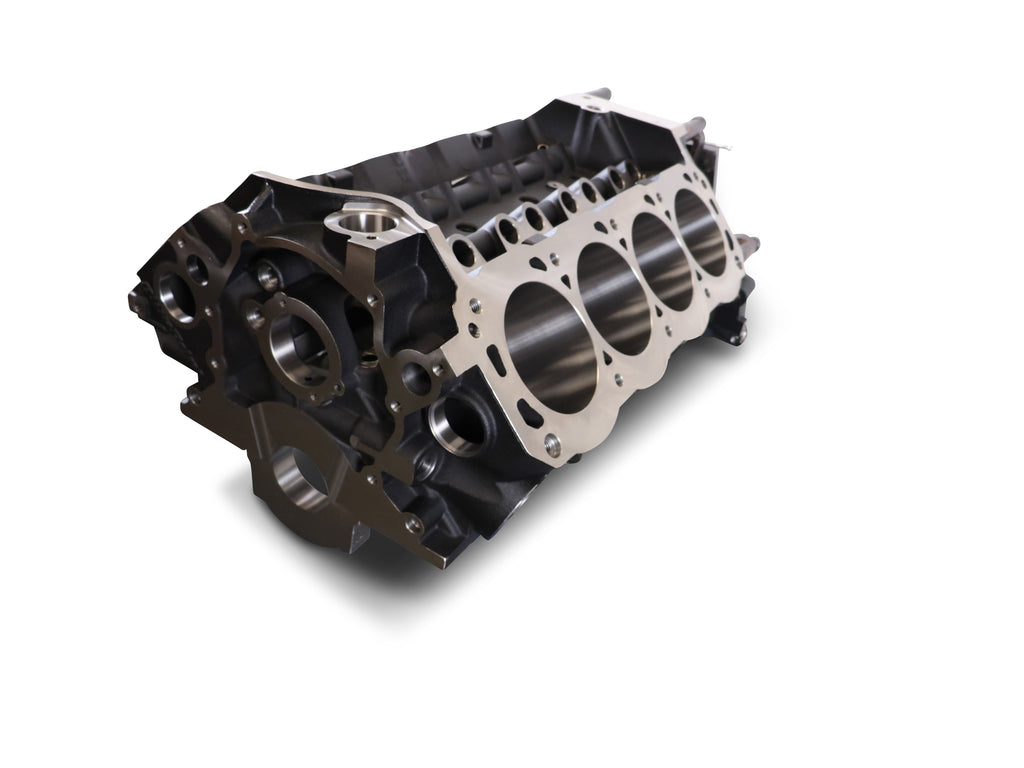

Bare Block – 632 c.i. – BBC, 2PC, SIAM, 10.200 x 4.600, BILLET MC

Description

About This Engine Block

When building a serious Big Block Chevy engine, everything starts with the block. The foundation must be capable of handling extreme cylinder pressures, large displacement combinations, and high horsepower output without compromising reliability.

This 632 C.I. BBC block was engineered specifically for builders who demand more than standard factory castings can provide. Featuring a reinforced structure, billet steel main caps, priority main oiling system, and thick cylinder walls, it delivers the strength needed for modern high-performance engine combinations.

Whether your goal is maximum torque, naturally aspirated horsepower, forced induction performance, or marine reliability, this block provides the foundation required to support your build.

The combination of a 10.200-inch deck height, Siamese bores, and support for up to a 4.750-inch stroke allows builders to achieve impressive displacement while maintaining structural integrity.

Ideal Applications

This block is designed for demanding performance environments including:

• Big Block Chevy street builds
• Drag racing engines
• Bracket racing combinations
• Pro Street vehicles
• Street and strip applications
• Marine performance engines
• Offshore powerplants
• High-horsepower naturally aspirated engines
• Nitrous applications
• Supercharged combinations
• Turbocharged BBC builds

Its robust construction makes it suitable for applications where durability and power handling are critical.

Designed for Maximum Displacement

One of the standout features of this block is its ability to support large displacement engine combinations.

Key capabilities include:

• Maximum displacement of 632 cubic inches
• Maximum bore size of 4.630 inches
• Maximum stroke capacity of 4.750 inches
• 10.200-inch deck height
• Siamese bore configuration

These specifications provide engine builders with flexibility when designing custom high-performance combinations.

Heavy-Duty Block Construction

Strength begins with the casting itself.

This block is manufactured from high-strength EN-GJL-250 iron, a material chosen for its:

• Excellent rigidity
• Superior durability
• Thermal stability
• High-load capability
• Resistance to distortion

The heavy-duty construction helps maintain cylinder integrity and bearing alignment under extreme operating conditions.

Billet Steel Main Cap Design

The bottom end of any performance engine experiences tremendous stress.

This block features:

• Billet steel main caps
• High-strength main fasteners
• Precision line-honed main bores
• Enhanced crankshaft support

These upgrades significantly improve bottom-end strength and durability compared to standard production blocks.

Priority Main Oiling System

Proper lubrication is essential for high-performance engines.

The priority main oiling system is designed to:

• Deliver oil directly to the main bearings first
• Improve crankshaft lubrication
• Enhance durability under load
• Support high-RPM operation
• Improve engine longevity

This design is widely preferred in serious performance applications.

Thick Cylinder Wall Architecture

Cylinder stability becomes increasingly important as displacement and horsepower increase.

This block features:

• Siamese cylinder bores
• Approximately .310-inch nominal wall thickness at maximum bore
• Reinforced cylinder structure
• Improved cylinder sealing capability

These characteristics help support large bore combinations while maintaining durability.

Optimized for Modern BBC Components

Builders can utilize many familiar Big Block Chevy components with this block.

Compatible systems include:

• OEM-style camshaft positioning
• OEM timing cover compatibility
• OEM oil pump compatibility
• OEM oil filter compatibility
• OEM starter compatibility
• OEM GEN IV oil pan compatibility
• OEM-style rear main seal arrangement

This compatibility simplifies the build process while maintaining flexibility.

Precision Machining Standards

Accurate machining is critical to engine performance.

Important machining specifications include:

• Main bearing bores line honed
• Precision deck surfaces
• Accurate cam bearing alignment
• Controlled lifter bore tolerances
• Consistent cylinder bore dimensions

These specifications help engine builders achieve reliable assembly and optimal performance.

Technical Specifications

This performance engine block includes the following specifications:

• Block Type: Big Block Chevy
• Maximum Displacement: 632 Cubic Inches
• Material: EN-GJL-250 Iron
• Deck Height: 10.200 Inches
• Bore Size (Rough): 4.589″–4.591″
• Maximum Bore Size: 4.630″
• Maximum Stroke: 4.750″
• Cylinder Wall Thickness: .310″ Nominal
• Main Bearing Bore: 2.937″–2.938″
• Main Caps: Billet Steel
• Main Fasteners: 1/2″-13 UNC
• Fastener Tensile Strength: 180,000–210,000 PSI
• Oiling System: Priority Main
• Rear Main Seal: Two-Piece
• Camshaft Position: OEM
• Cam Bearings: Durabond GM-12
• Lifter Bore Diameter: .8437″
• Timing Cover Compatibility: OEM GEN IV
• Oil Pan Compatibility: OEM GEN IV
• Approximate Weight: 250–270 lbs

Who This Block Is Best For

The Bare Block – 632 C.I. BBC, 2PC, SIAM, 10.200 x 4.600, Billet MC is ideal for:

• Professional engine builders
• Drag racers
• Street performance enthusiasts
• Marine engine builders
• Performance shops
• Custom fabrication specialists
• High-horsepower project builders
• Serious Big Block Chevy enthusiasts

It is particularly well suited for builders seeking maximum displacement and long-term durability.

Purchasing Confidence and Support

Selecting the right engine block is one of the most important decisions in any engine build.

Before ordering, builders should verify:

• Intended displacement goals
• Rotating assembly specifications
• Cylinder head compatibility
• Intended vehicle application
• Power output objectives

Our team is available to assist with technical questions and component compatibility recommendations.

Customers may also wish to explore our Big Block Chevy engine components, rotating assemblies, performance cylinder heads, and racing engine collections.

Frequently Asked Questions

What is the maximum displacement supported by this block?

This block supports engine combinations up to 632 cubic inches.

Is this block suitable for racing applications?

Yes. It is designed for street, strip, marine, and racing environments requiring high horsepower capability.

What type of main caps are included?

The block is equipped with billet steel main caps for maximum bottom-end strength.

What is a priority main oiling system?

A priority main oiling system directs oil to the crankshaft bearings first, improving lubrication and durability.

Can this block support forced induction?

Yes. The heavy-duty construction makes it suitable for supercharged, turbocharged, and nitrous-assisted applications.

What is the maximum stroke supported?

The block supports crankshaft strokes up to 4.750 inches.

What material is used in the block construction?

The block is manufactured from high-strength EN-GJL-250 iron for exceptional durability and rigidity.
