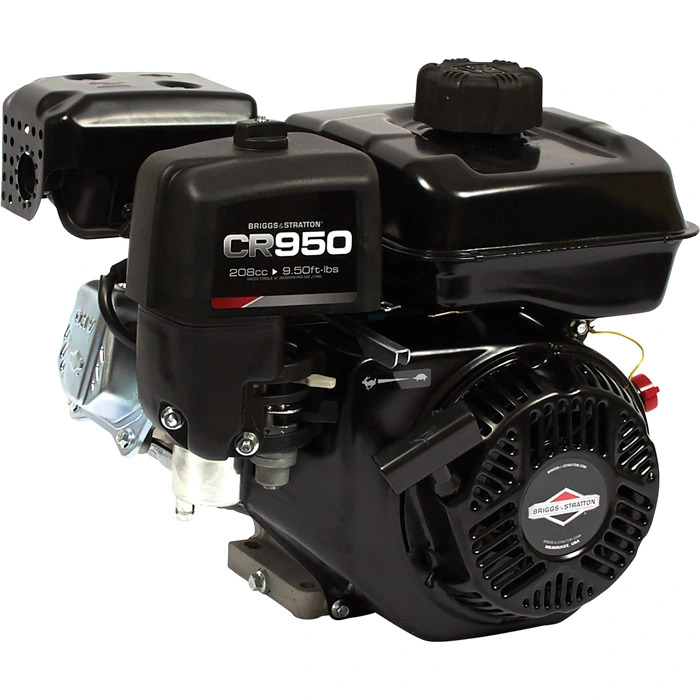

Briggs & Stratton 13R232-0001-F1 – Professional Overview
The Briggs & Stratton 13R232-0001-F1 is a 208cc horizontal-shaft gasoline engine from the CR950 Series. It is designed for equipment that requires a horizontal power shaft and a compact utility-engine configuration.
The engine produces 9.5 ft-lbs of gross torque, providing a practical balance of displacement and usable torque for compatible equipment. Its recoil starter and air-cooled design make it a straightforward option for applications where an electric starting system is not required.
The 13R232-0001-F1 is also identified by its specific crankshaft dimensions, making those measurements particularly important when selecting it as a replacement engine. The 3/4-inch diameter and 2-27/64-inch shaft length should be compared with the original engine before installation.
Compatibility, Applications, and Technical Context
This Briggs & Stratton engine is intended for equipment built around a horizontal crankshaft. Its physical configuration makes it fundamentally different from vertical-shaft engines commonly used in walk-behind lawn mowers.
The engine uses a 3/4-inch diameter crankshaft measuring 2-27/64 inches in length. The shaft includes a 3/16-inch keyway and uses a 5/16-24 threaded crankshaft end. These measurements are important when connecting pulleys, belts, couplings, or other driven equipment components.
The listed PTO height is 4.17 inches, while the belt circle is 2.56 inches SAE. These dimensions should be compared with the original engine and equipment before purchase.
The engine uses gasoline fuel, air cooling, and a splash lubrication system. Its cartridge air cleaner includes a pre-filter, providing the specified filtration configuration for this model.
Construction, Cooling, and Operating Features
The 13R232-0001-F1 uses a cast iron cylinder bore within its 208cc engine configuration. Cast iron cylinder sleeves are commonly used in utility engines where the cylinder structure must withstand repeated operating cycles.
Cooling is provided through an air-cooled system, eliminating the need for a liquid cooling circuit. This configuration keeps the engine’s cooling arrangement relatively straightforward for compatible equipment.
The lubrication system uses splash lubrication, while the engine also includes an oil guard. A PTO ball bearing is specified as part of the engine’s configuration.
The combination of a horizontal shaft, recoil starting system, air cooling, and compact utility-engine design makes this model appropriate for equipment specifically engineered around these characteristics.
Why This Engine Is a Practical Choice
When replacing a horizontal-shaft engine, the most important consideration is not displacement alone. The crankshaft diameter, shaft length, keyway, PTO height, mounting arrangement, and torque requirement all need to correspond with the equipment.
The 13R232-0001-F1 provides clearly defined mechanical specifications that allow buyers and technicians to compare the engine against an existing power unit. Its 3/4-inch keyed crankshaft and 4.17-inch PTO height are particularly important during replacement planning.
The 9.5 ft-lbs gross torque rating also provides a useful reference when determining whether the engine’s output is appropriate for the equipment being powered.
For buyers replacing an existing Briggs & Stratton engine, comparing the original model number and shaft configuration can provide a more reliable compatibility check than comparing horsepower or displacement alone.
Who This Engine Is Best For
The Briggs & Stratton 13R232-0001-F1 is best suited to equipment owners, repair technicians, landscaping professionals, and small-engine service businesses working with compatible horizontal-shaft applications.
It can be a practical choice when the equipment requires a 208cc-class gasoline engine with the specified crankshaft configuration and torque output.
For replacement projects, the engine is particularly appropriate when the original equipment requires a 3/4-inch x 2-27/64-inch keyed crankshaft and the corresponding PTO configuration.
Buyers should not select this engine solely because the displacement appears similar to their original engine. Physical fitment and shaft specifications should be confirmed first.
Product Specifications
The 13R232-0001-F1 is a 208cc CR950 Series horizontal engine using gasoline fuel and producing 9.5 lbs of listed torque. It uses recoil starting, air cooling, and splash lubrication.
Its crankshaft measures 3/4 inch in diameter and 2-27/64 inches in length, with a 3/16-inch keyway and 5/16-24 threaded end. The engine also has a 4.17-inch PTO height and a 2.56-inch SAE belt circle.
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Model | 13R232-0001-F1 |
| Series | CR950 |
| Displacement | 208cc |
| Torque | 9.5 ft-lbs Gross Torque |
| Starter | Recoil |
| Crankshaft Orientation | Horizontal |
| Crankshaft Type | Straight |
| Crankshaft Diameter | 3/4″ |
| Crankshaft Length | 2-27/64″ |
| Crankshaft End Thread | 5/16-24 |
| Keyway Width | 3/16″ |
| Cylinder Bore | Cast Iron Sleeve |
| Cooling System | Air Cooled |
| Air Cleaner | Cartridge with Pre Filter |
| Fuel Type | Gasoline |
| Lubrication | Splash |
| PTO Height | 4.17″ |
| Belt Circle | 2.56″ SAE |
| Oil Guard | Yes |
| PTO Ball Bearing | Yes |
| Warranty | 2 Year Consumer / 1 Year Commercial |
Ordering Confidence, Availability, and Support
Before purchasing the 13R232-0001-F1, compare the original engine and equipment against the published crankshaft and PTO specifications. The shaft diameter, length, keyway, threaded end, and PTO height can all affect installation.
It is also important to verify that the equipment’s power requirement is appropriate for the engine’s 9.5 ft-lbs gross torque rating.
For replacement projects, buyers can also review related horizontal-shaft engines, replacement small engines, and outdoor power equipment engine components when evaluating alternatives or complementary parts.
If the original engine model is available, using its model number together with the crankshaft measurements provides a stronger basis for determining compatibility.
Frequently Asked Questions
What is the Briggs & Stratton 13R232-0001-F1?
The Briggs & Stratton 13R232-0001-F1 is a 208cc CR950 Series horizontal engine with a recoil starter and 9.5 ft-lbs of gross torque. It is designed for compatible gasoline-powered equipment requiring a horizontal crankshaft.
What size crankshaft does the 13R232-0001-F1 have?
The engine has a 3/4-inch diameter crankshaft measuring 2-27/64 inches long. It features a 3/16-inch keyway and a 5/16-24 threaded crankshaft end.
How much torque does this Briggs & Stratton engine produce?
The 13R232-0001-F1 is listed with 9.5 ft-lbs of gross torque. The appropriate torque requirement depends on the equipment and its intended operating conditions.
Is the 13R232-0001-F1 a horizontal or vertical engine?
It is a horizontal engine. The crankshaft is positioned horizontally, so it should only be selected for equipment designed for a horizontal-shaft engine configuration.
What type of starting system does this engine use?
The engine uses a recoil starter. It does not use the electric-start configuration specified for some other small-engine models.
Is the Briggs & Stratton 13R232-0001-F1 air cooled?
Yes. The engine uses an air-cooled system and a splash lubrication system. Its cylinder bore is specified as a cast iron sleeve.
What should I verify before ordering this engine?
Verify the original equipment’s crankshaft diameter, shaft length, keyway width, threaded end, PTO height, mounting arrangement, and torque requirements. Matching these specifications helps ensure the replacement engine is mechanically suitable.
