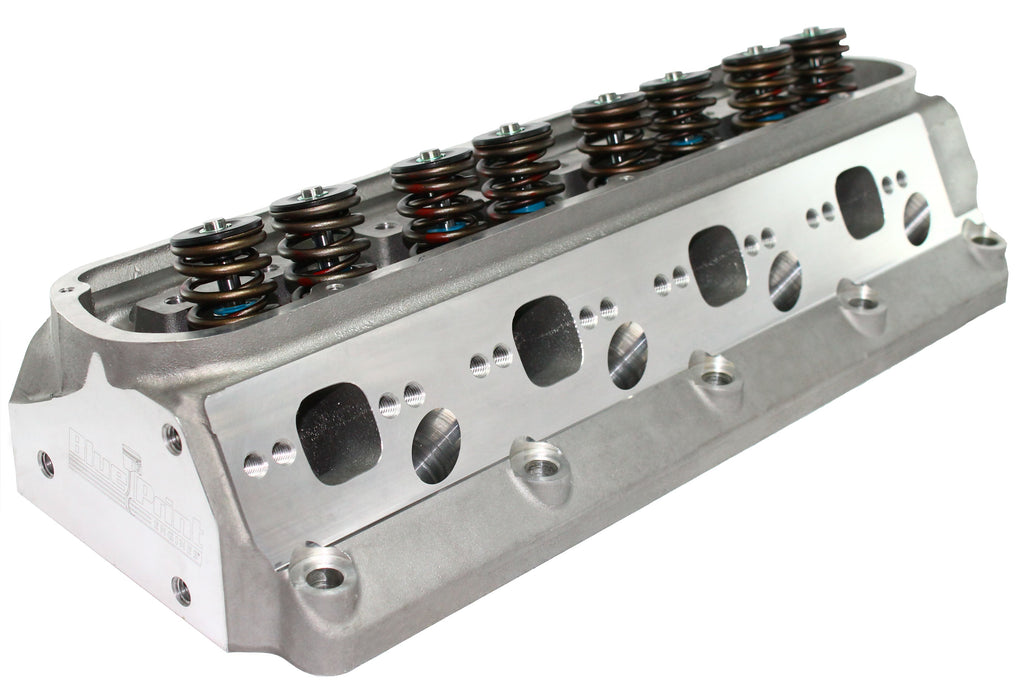

Aluminum Assembled Cylinder Head – Pedestal Mount – Ford SB Compatible – 190cc

Description

Overview:
Get big power on a small budget with BluePrint Muscle Series cylinder heads! These lightweight aluminum heads bolt up to your small block Ford and feature 190cc intake/65cc exhaust runners, 60cc combustion chambers, and 2.02″ intake/1.60″ exhaust valves. They’re fully assembled with valve springs, retainers, locks, and seals. Manufacturers part number -HP9008.
Maximum Output for Less Money!
Designed and Produced by BluePrint Engines
Fully Assembled with Heavy Duty Components
Backed by Our Full 12-Month Limited Warranty
Intake:
Intake Runner Volume (cc): 190cc
Intake Port Location: Standard
Intake Port Shape: Rectangular
Port Dimension 2 x 1.10 in.
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.020 in.
Machined Intake Runner: CNC-No
CFM Port Flow Average @ 28″
.100″ – 73
.200″ – 120
.300″ – 168
.400″ – 203
.500″ – 238
.600″ – 240
Exhaust:
Runner Volume (cc): CNC- 65cc
Exhaust Valve Diameter (in): 1.600 in.
Exhaust Valves Included: Yes
Port Shape: Square
Exhaust Port Location: Standard
CFM Port Flow Average @ 28″
.100″ – 58
.200″ – 104
.300″ – 128
.400″ – 146
.500″ – 159
.600″ – 166
Combustion Chamber:
Combustion Chamber Volume (cc): 60cc
CNC-Machined Combustion Chamber: No
Valve Specs:
Maximum Valve Lift (in): .575 in.
Intake Valve Angle: 20 Degrees
Exhaust Valve Angle: 20 Degrees
Valve Guides Included: Yes
Valve Guide Material: Manganese Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-Angle
Valve Seat Material: Chrome Nickle
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Viton® Fluoroelastomer
Springs:
Valve Springs Included: Yes
Spring Pressure Open: 295-305 @ 1.225
Spring Pressure Closed: 115-125 @ 1.800
Outside Diameter of Outer Spring (in): 1.437 in.
Camshaft Style: Hydraulic Roller
Damper Spring Included: Yes
Number of Springs per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromemoly Steel
Locks Included: Yes
Lock Style: 7 Degree
Guide Plates:
Guide Plates Included: No
Rocker Arms:
Rocker Arm Studs Included: No
Rocker Arms Included: N/A
Rocker Arm Nuts Included: No
Misc:
Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Cover Mounting Style: Standard
Oiling Style: Through Pushrod
Valve Cover Style: Perimeter Bolt
Accessory Bolt Holes Drilled: Yes
Machined for O-Ring: No
Spark Plug Style: Angled
Heat Crossover: No
7/16-14 in. & 3/8-16 in. Accessory Bolt Holes Machined on Ends of Heads
Qty:
Sold Individually
Warranty:
Backed by our full 12-month limited warranty!
